Get videos from an SD card using the Integrated Video app

You can search cameras for videos that do not appear in the Video List. If the video is still on the camera's SD card, you can request and download a 40-second video.

You can only request videos if the footage is on the SD card. Depending on the card’s capacity, SD cards hold at least 22 hours of footage (or ‘driving time’) which is then recorded over as usage continues.

Before you begin

The camera must be online before you search for videos. Make sure that:

  1. The ignition is on, and the vehicle has been moving for at least 2 mins.
  2. The camera has booted up and the lights are showing solid blue and green. This indicates that the camera is online and ready to receive video requests from Reveal.

Find videos on the SD card

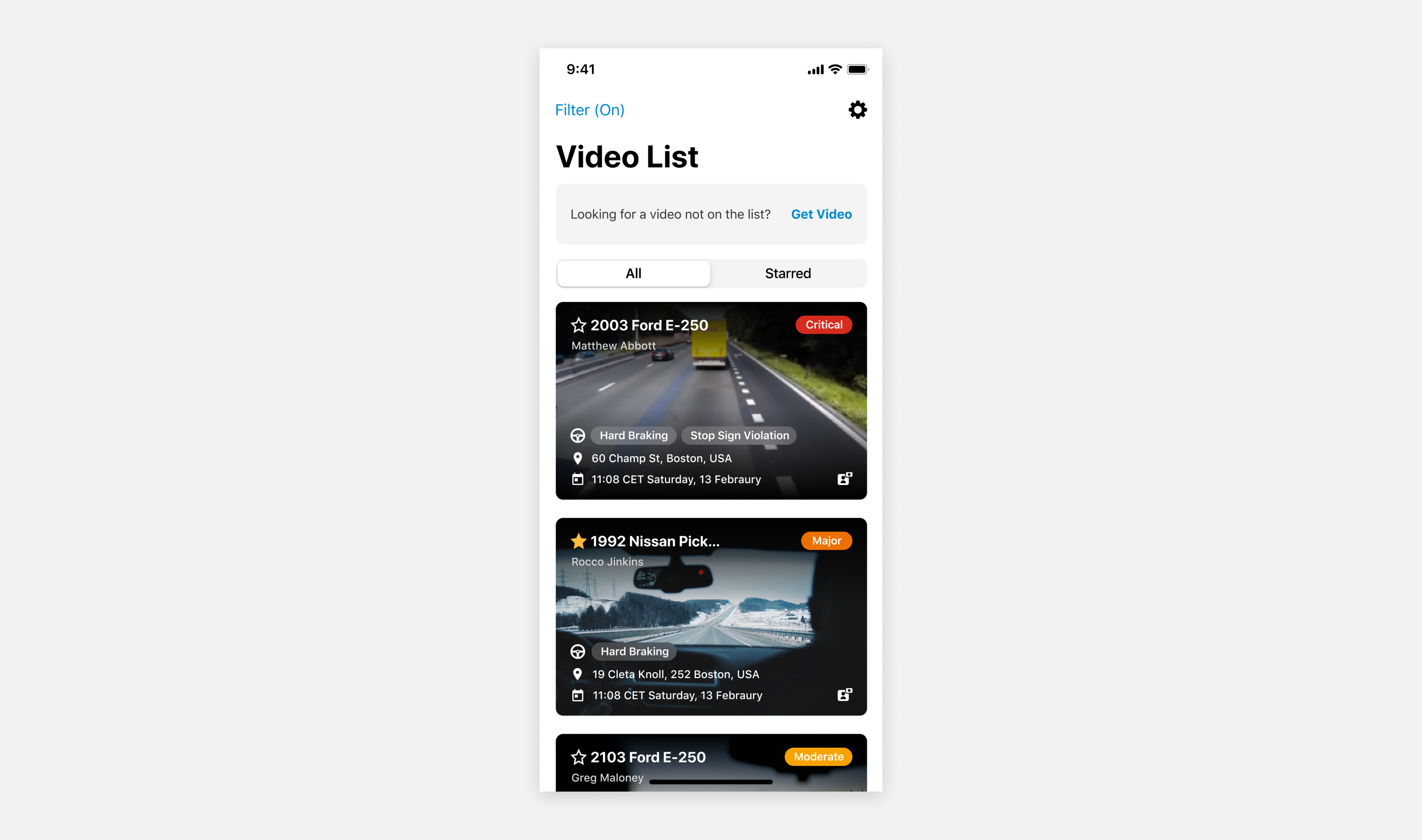

  1. In the Video List, tap GET VIDEO.

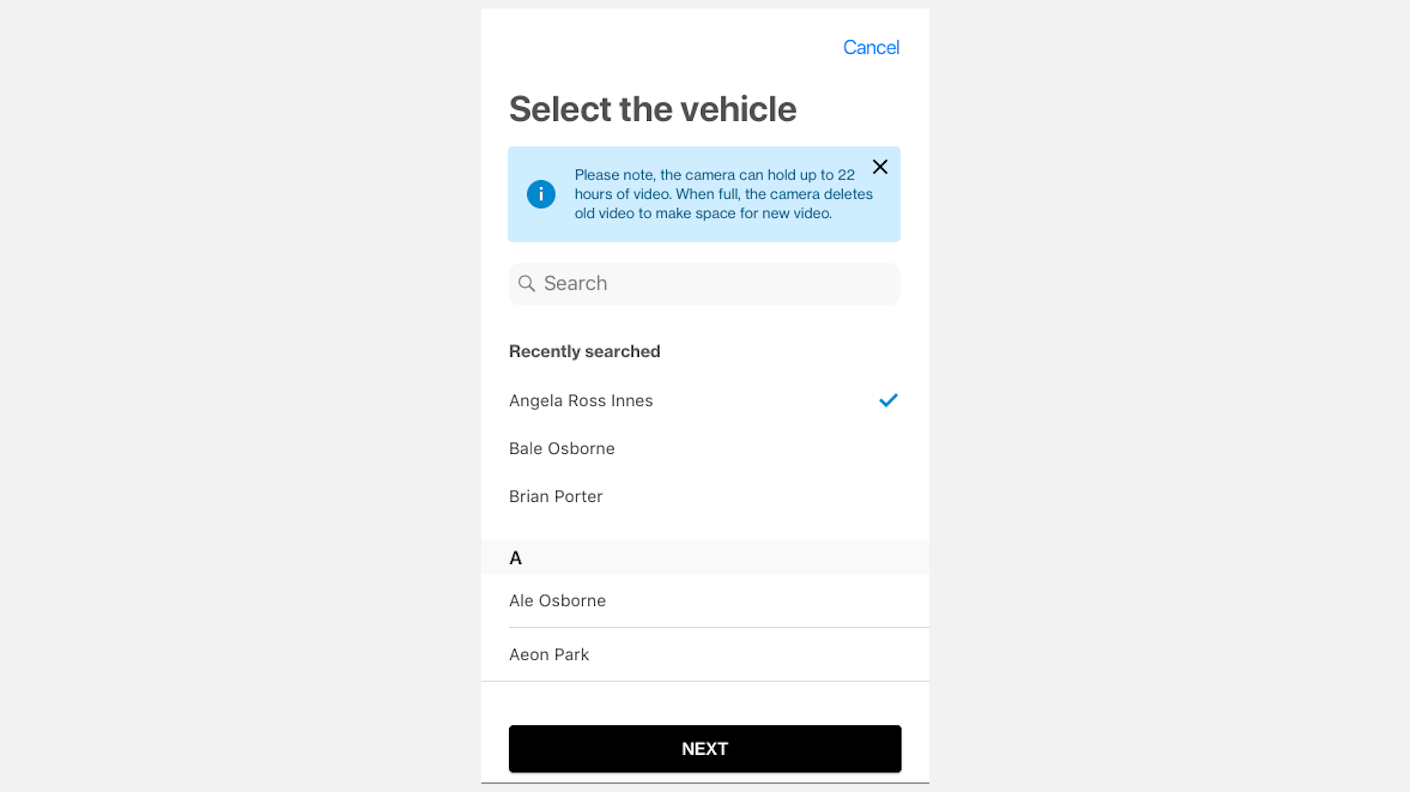

  2. Select the vehicle. If the camera status is ‘online’, you can search for videos. If the camera status is ‘offline’, you cannot continue your search.
  3. Tap NEXT. Get_Video_VOD_1.png

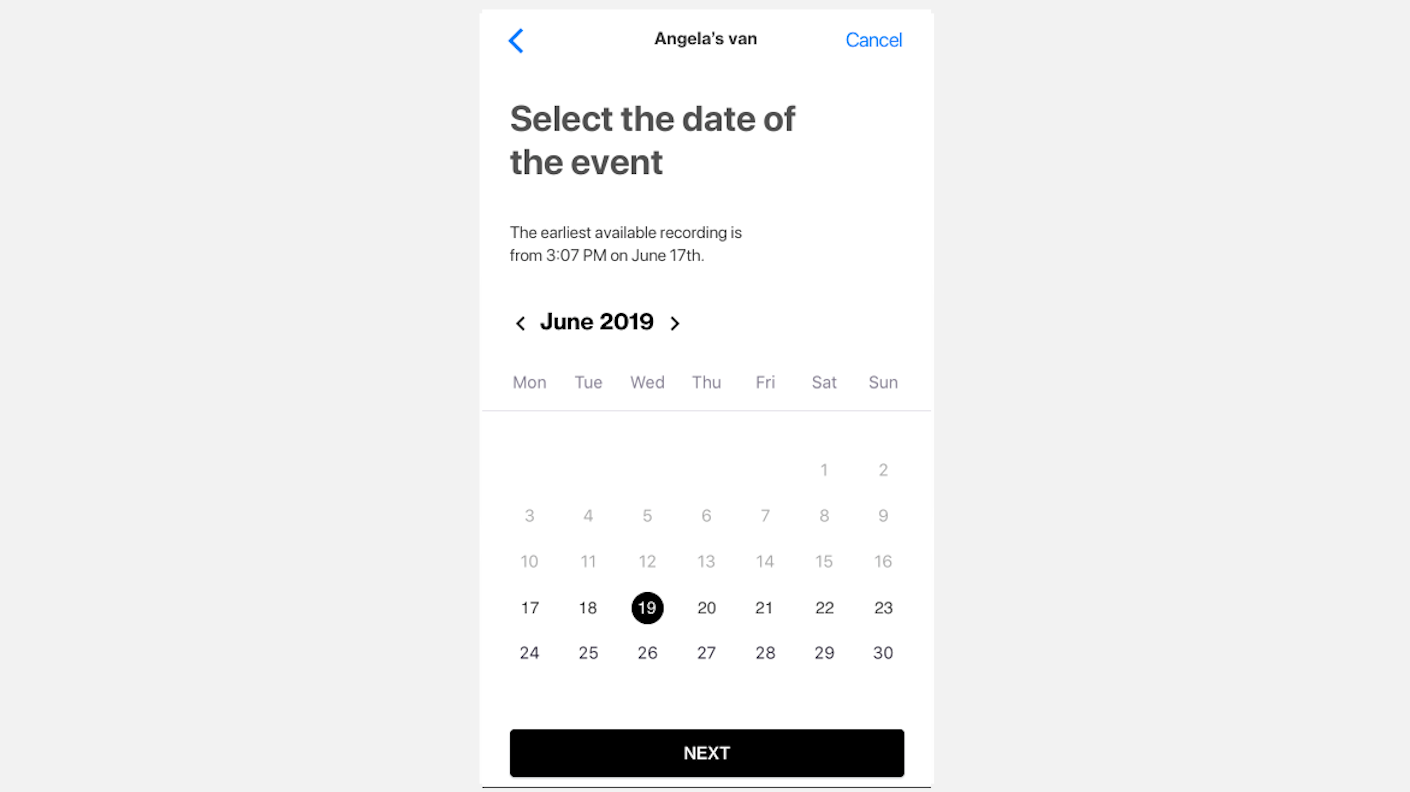

  4. Select the date of the event and tap NEXT. A message confirms the time and date of the earliest available recording. Select_Date__VOD_3.png

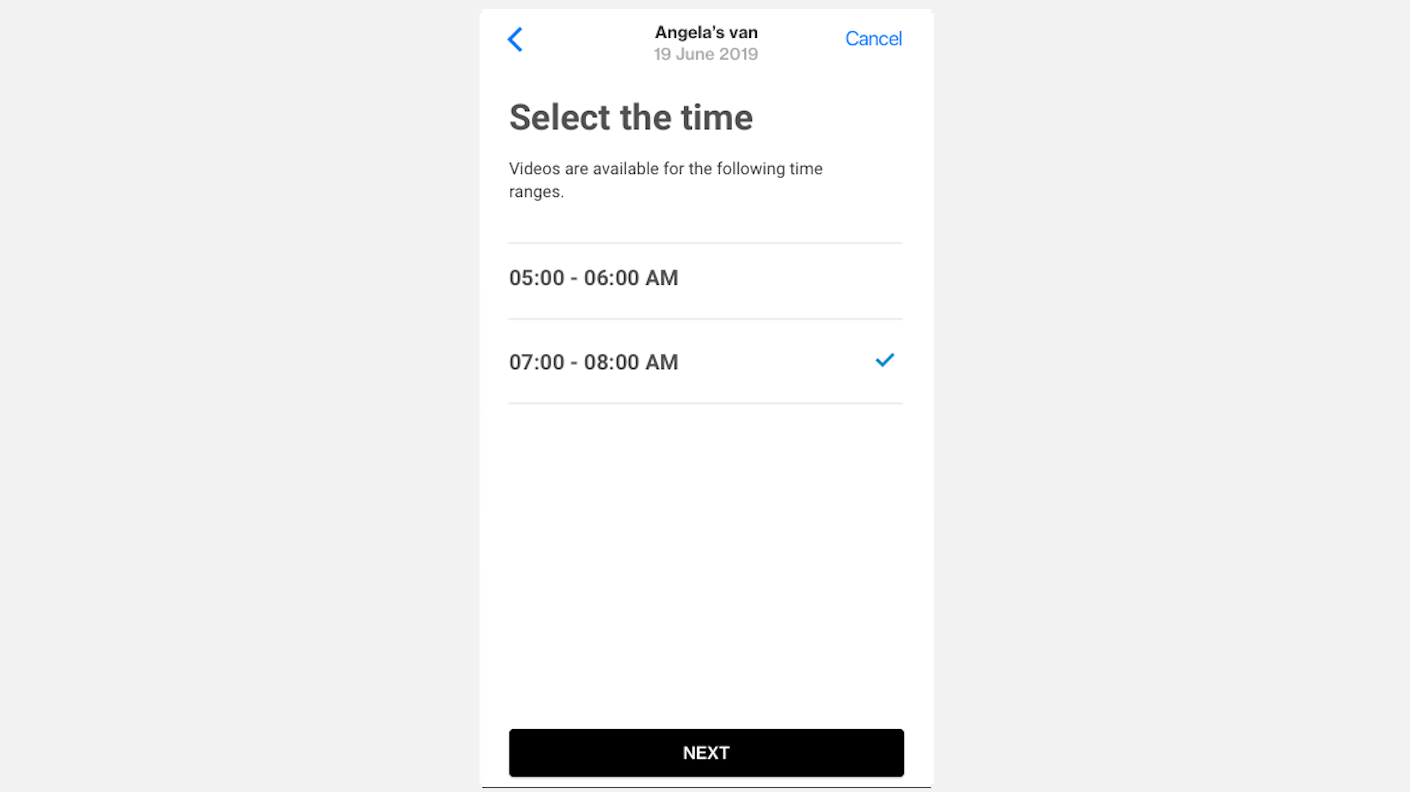

  5. Select a time range and tap NEXT. Select_Time__VOD_3.png

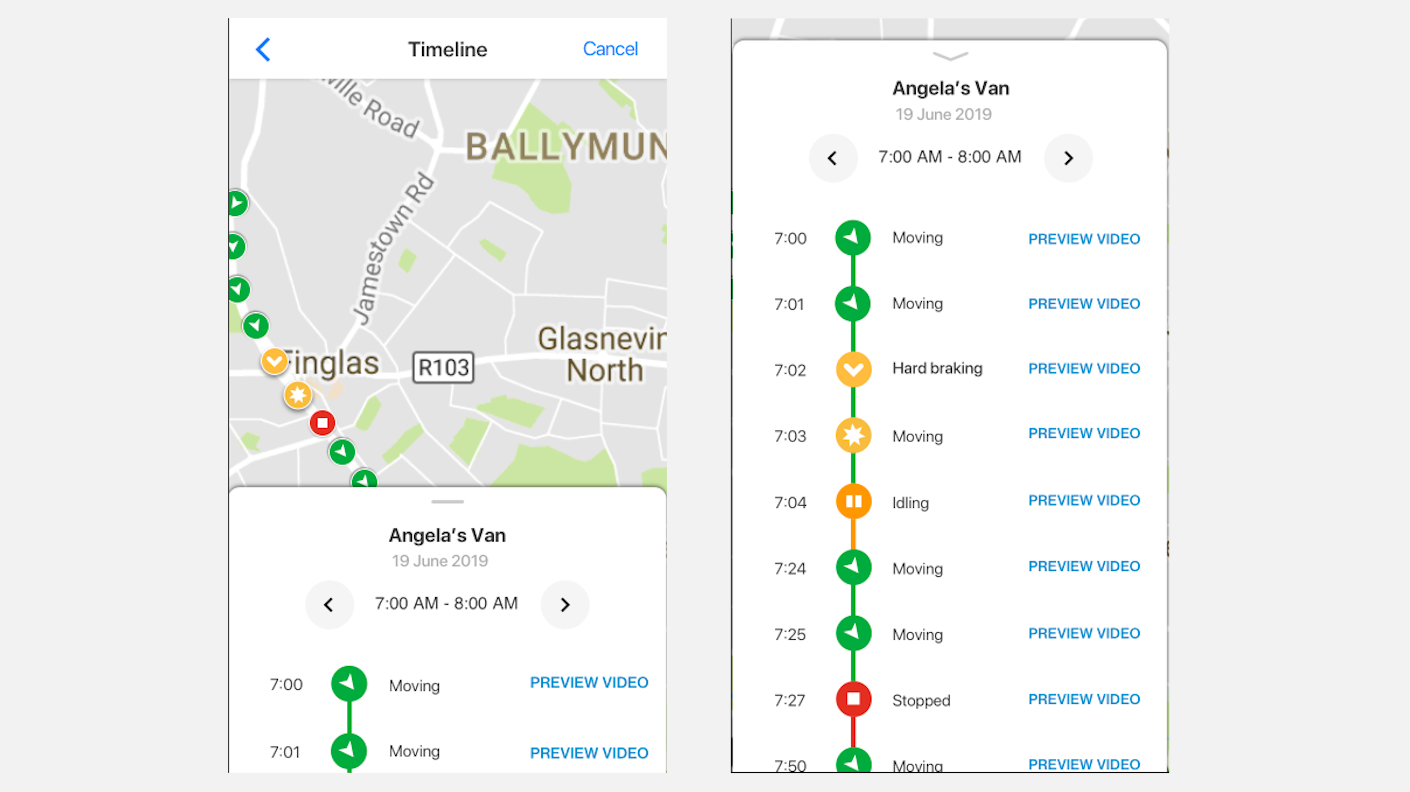

  6. Swipe up to expand the timeline and locate the event. Timline_VOD5.png
  7. Tap PREVIEW VIDEO.

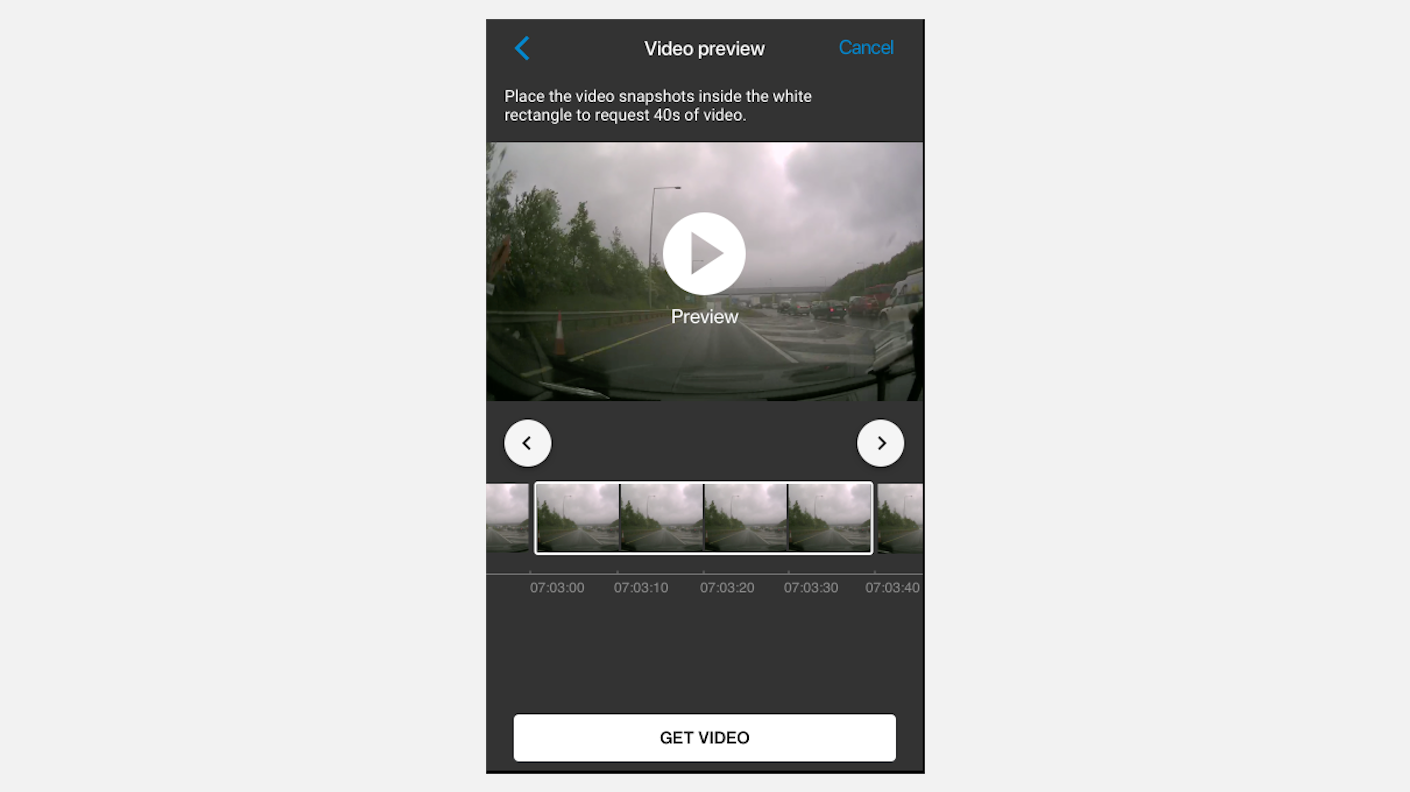

  8. On the Plot Preview screen, swipe left or right to move the required snapshots into the selector. Preview_VOD_7.png
  9. To watch the clip, tap Preview.

Request videos

  1. When you have chosen a time range, tap GET VIDEO. A message confirms that the video is on the way.
  2. In the confirmation message, tap BACK TO VIDEO LIST to return the Video List, or tap REQUEST ANOTHER VIDEO to remain in the timeline and request another video.
  3. When the video is ready to watch, an email notification, a desktop alert, or a push notification is sent to your mobile device. Tap the notification to go to the Video List.
    The requested video is added to the Video List with the Requested tag.

Videos are deleted from Reveal after 90 days. You can request older videos within a certain time period, which depends on your data retention plan and location.

Can’t find videos on the SD card?

If you still can’t find the video you want, consider whether any of the following apply:

If you suspect a collision has occurred and a video was not triggered in Reveal, download footage from your SD card as soon as possible.

Download SD card videos.

Replace camera SD cards.
