Find the road-facing camera's video connector

To install the driver-facing camera (model 2), you need to find and connect to the road-facing camera’s video connector cable. This is sometimes hidden inside the headliner or behind the A-pillar.

Find the connector

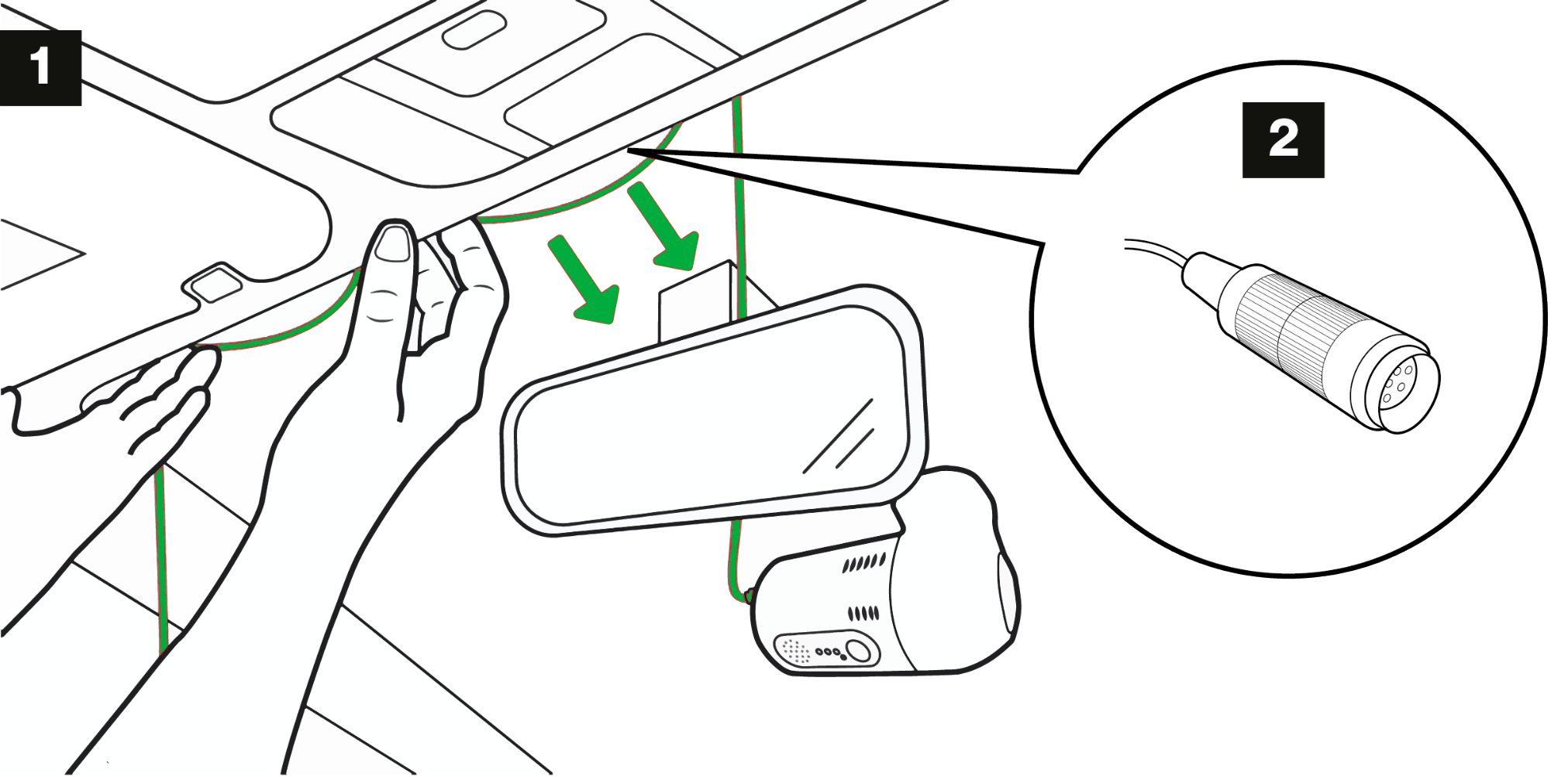

  1. Locate the cable coming from the road-facing camera and follow it to the headliner.
  2. Slowly pull on the cable to remove it from the headliner.

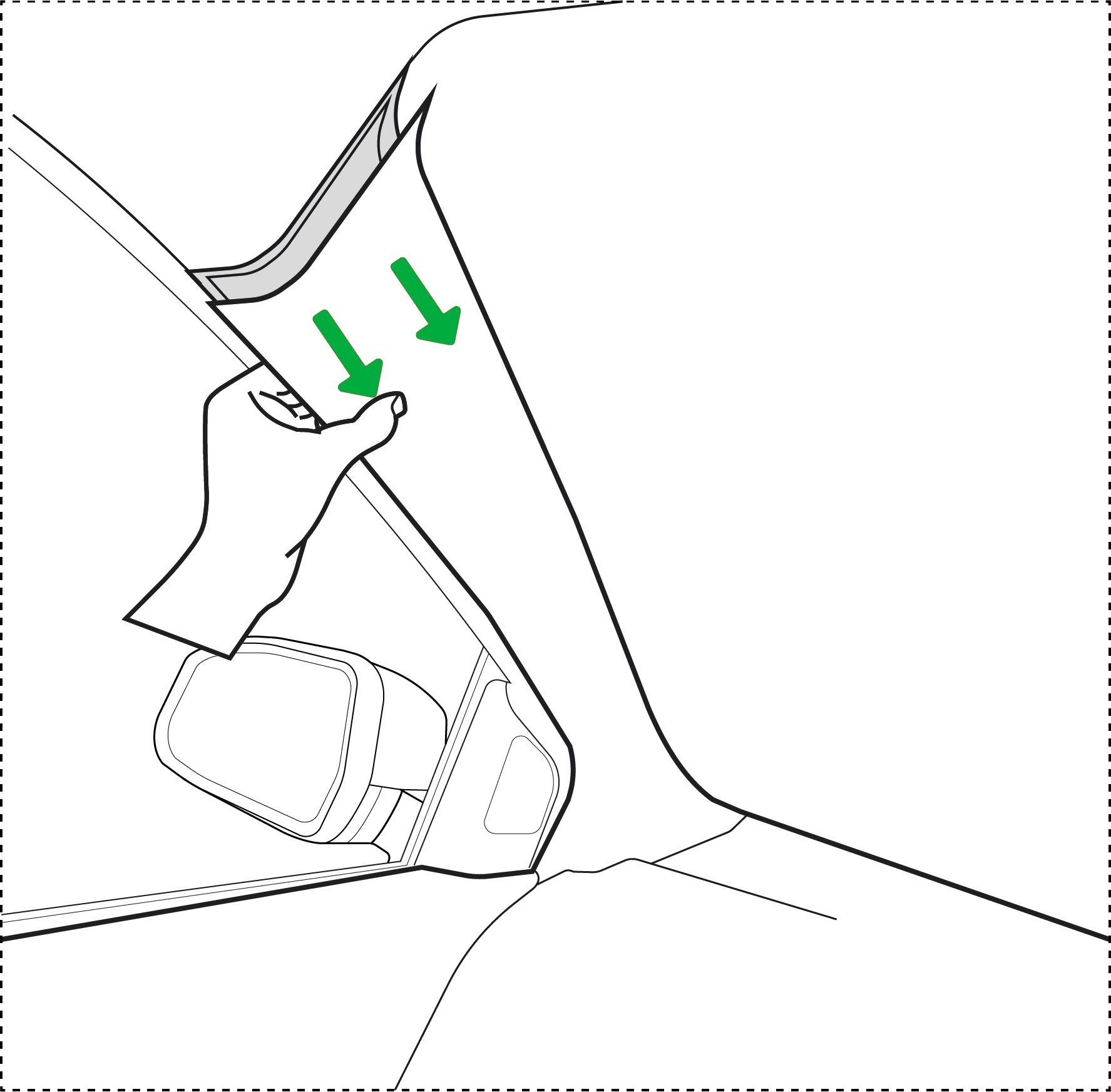

  3. If the connector is not behind the headliner, remove the A-pillar cover. This may be as simple as removing the screw or releasing the clip that holds the A-pillar in place. However, always consult the vehicle manual first.
    Do not undo the clips that hold the airbag in place, to avoid setting off the airbag.
