Get videos from an SD card

You can search for videos that do not appear in the Video > Events tab. If the video is still on the camera's SD card, you can request and download a 40-second video.

You can only request videos if the footage is on the SD card. Depending on the card's capacity, SD cards hold at least 22 hours of footage (or 'driving time') which is then recorded over as usage continues.

Videos cannot be accessed by Support agents.

In this article:

Before you begin

The camera must be online before you search for videos. Make sure that:

  1. The ignition is on, and the vehicle has been moving for at least 2 minutes.
  2. The camera has booted up and the lights are showing solid blue and green. This indicates that the camera is online and ready to receive video requests from Reveal.

Find videos on the SD card

To request a video, follow these steps:

  1. Use the Integrated Video app, your mobile device or desktop computer to open the Video > Events tab and select GET VIDEO.
  2. Select the vehicle. If the camera status is 'online', you can search for videos. If the camera status is 'offline', you cannot continue your search. VOD.png

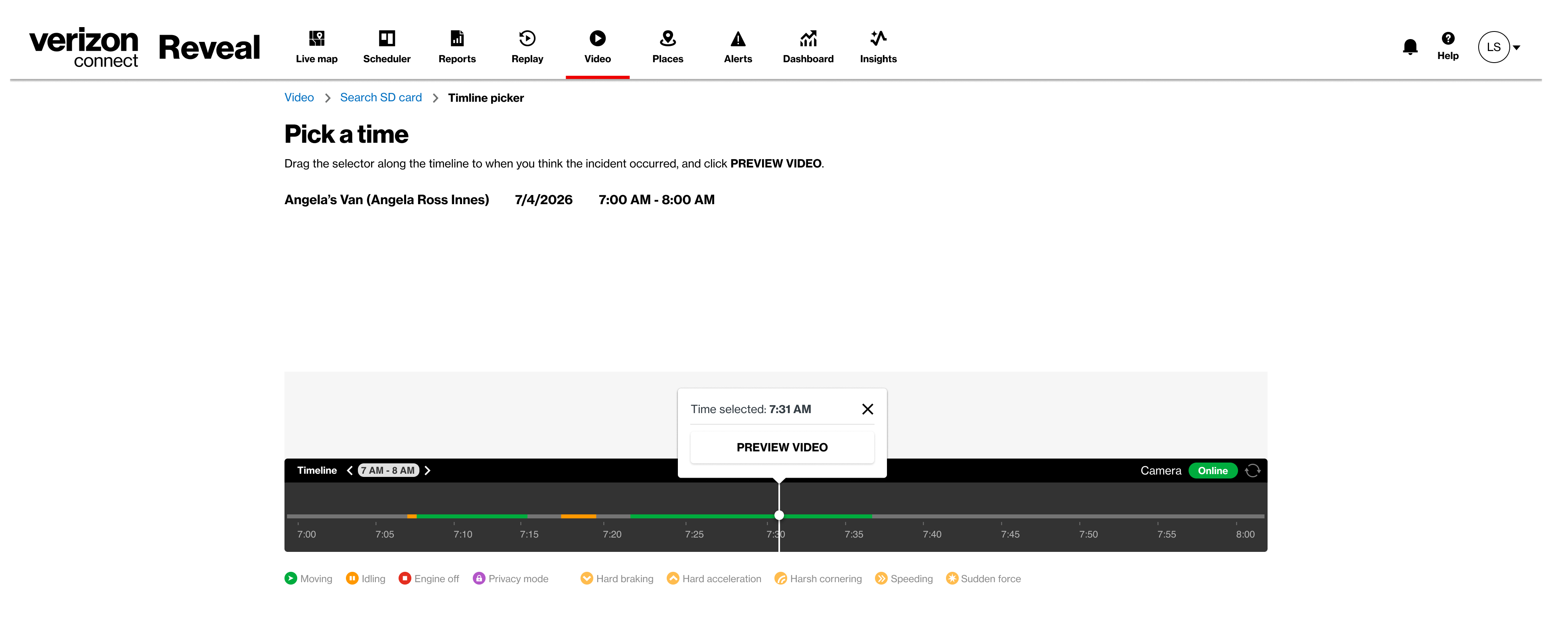

  3. Select the date, and the time of the incident. A message confirms the time and date of the earliest available recording.

  4. Select NEXT. The video timeline displays.

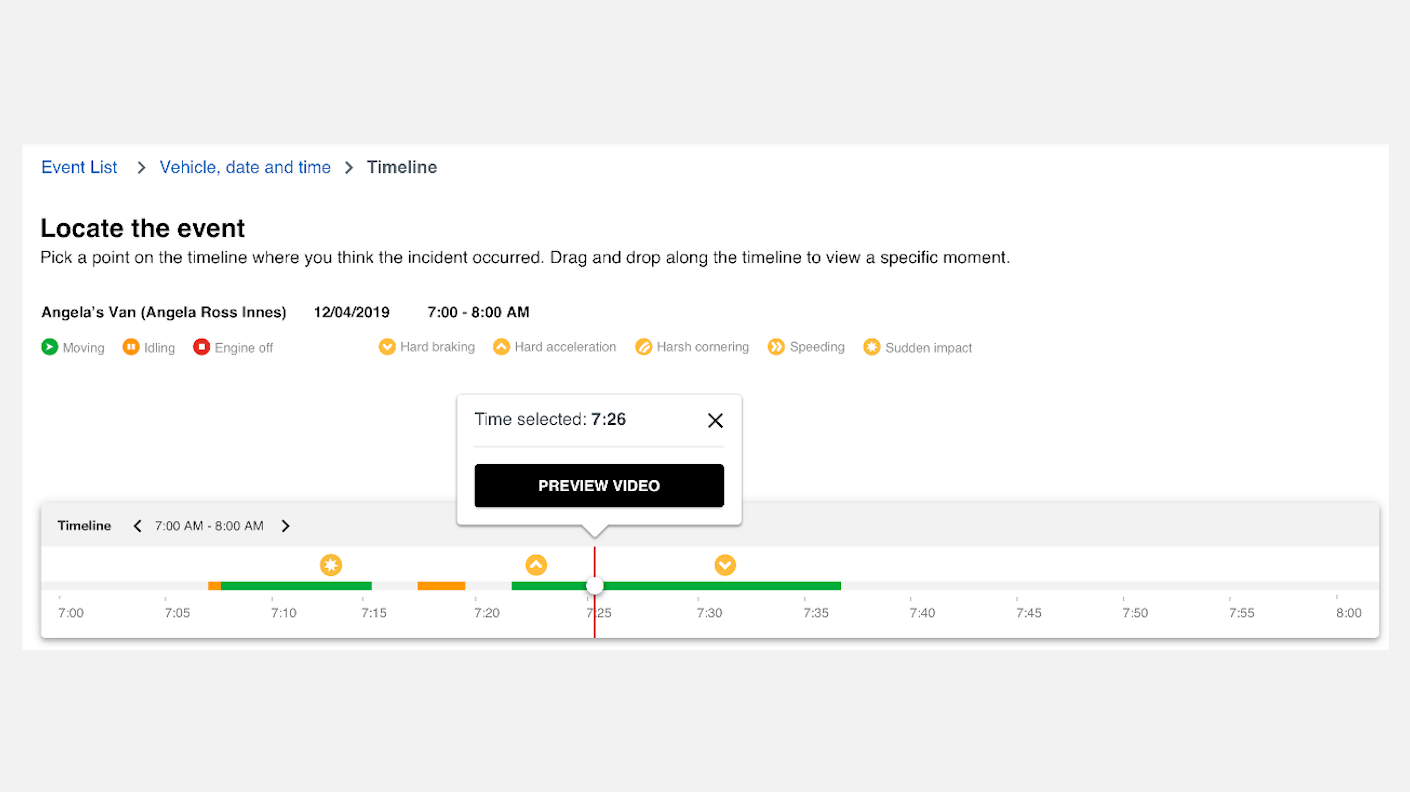

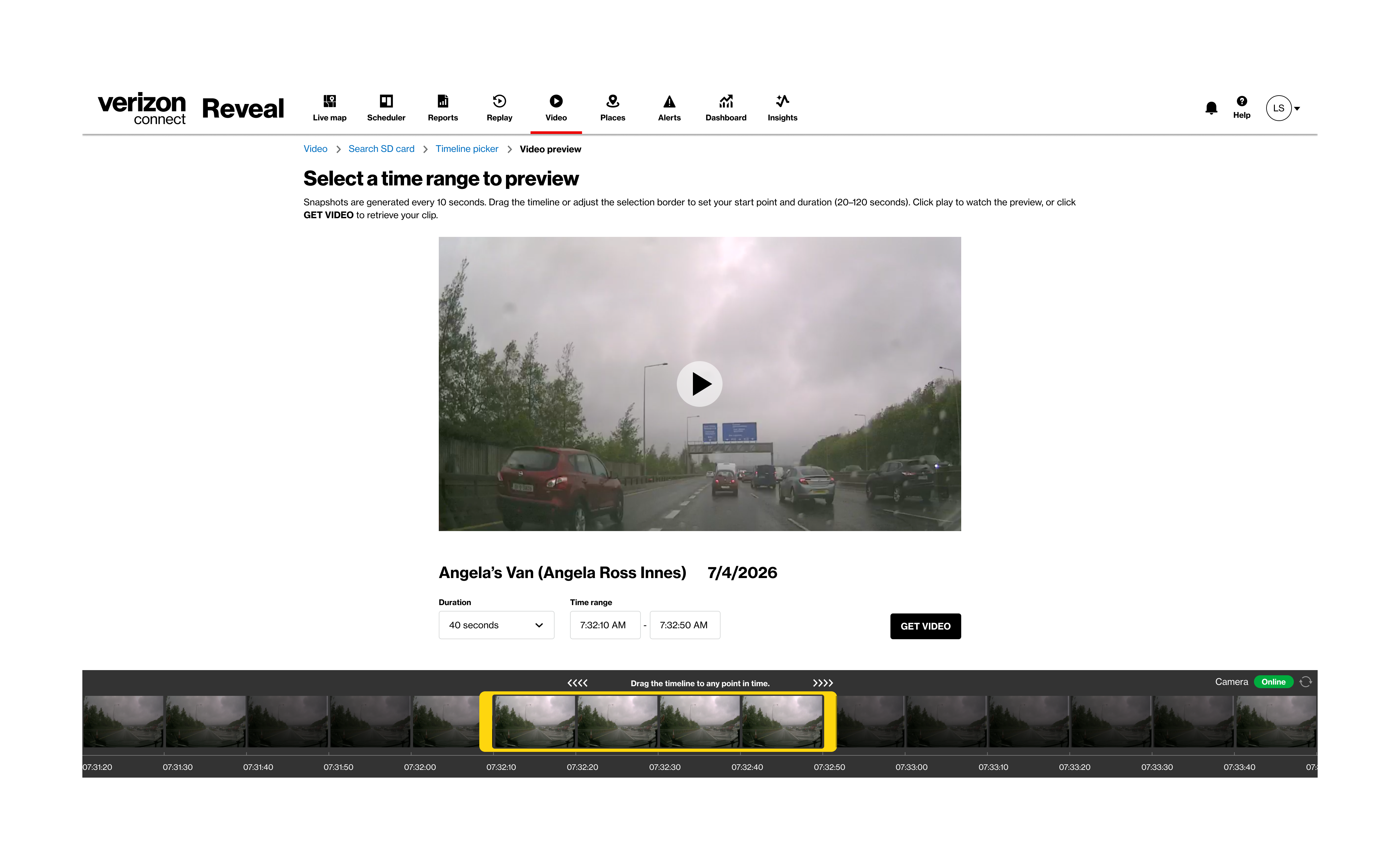

  5. Drag the selector along the timeline to when you think the incident occurred and select PREVIEW VIDEO.

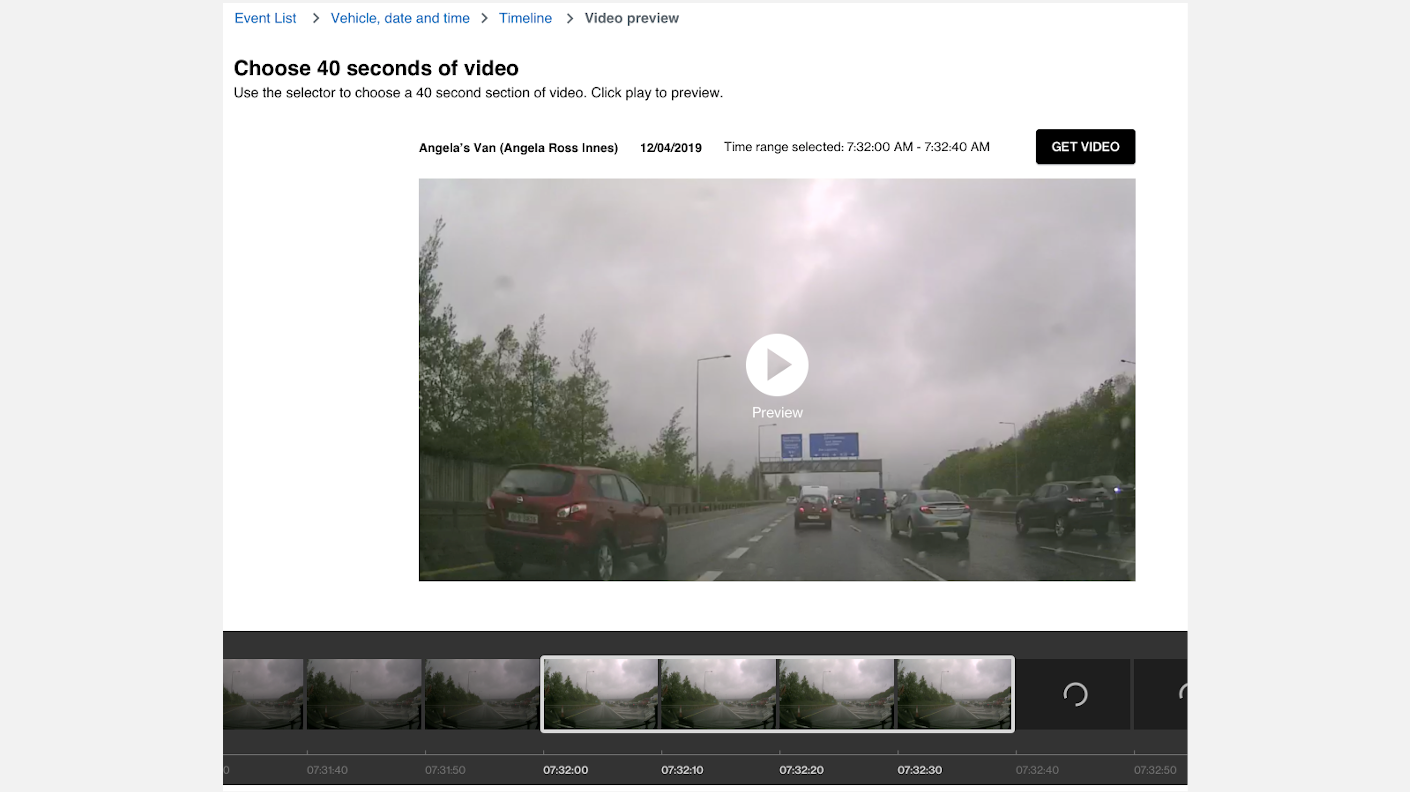

  6. To watch the clip, select the preview button. VOD_Preview.png

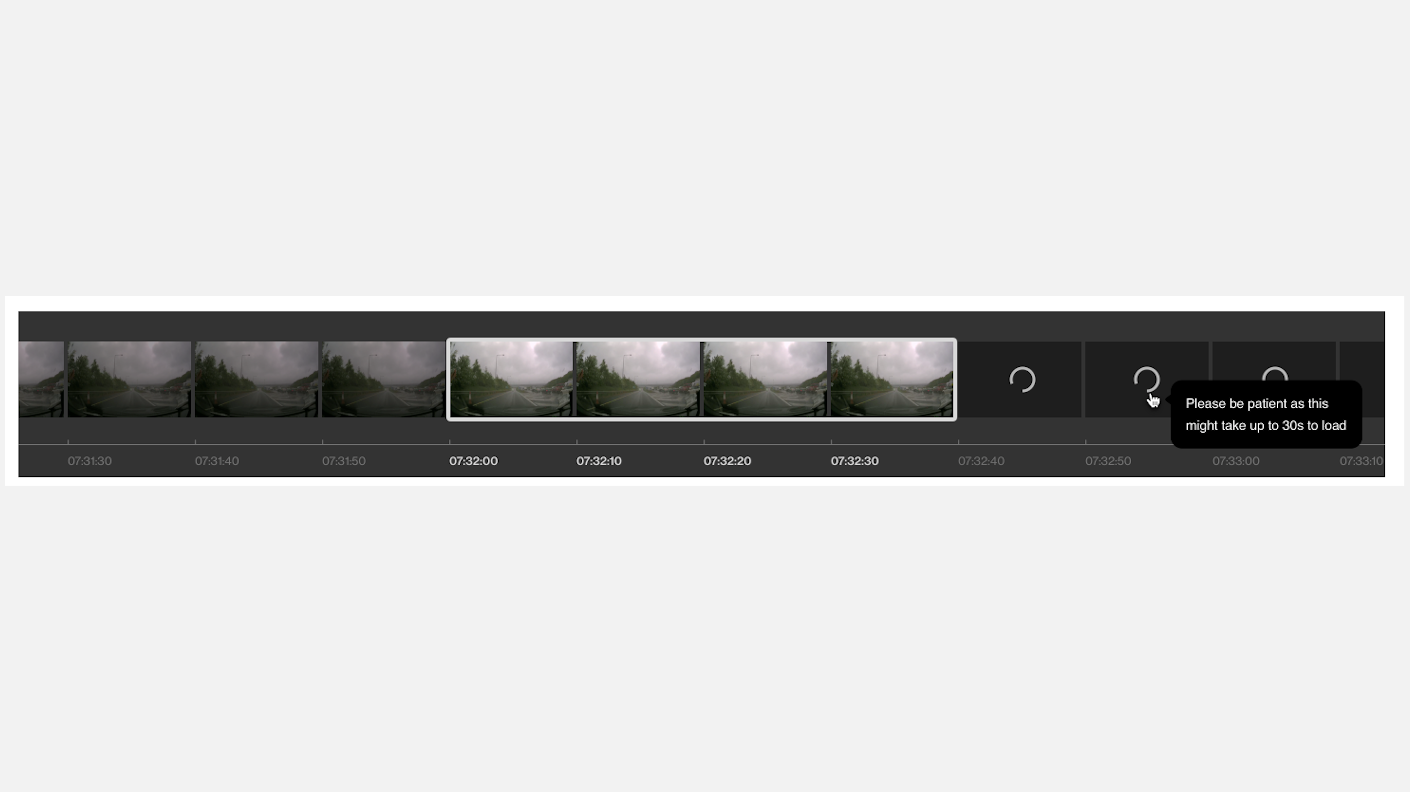

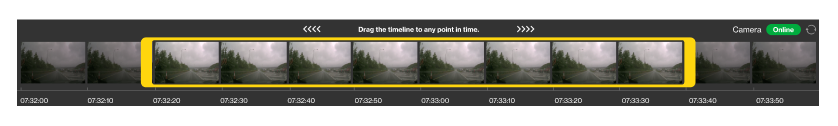

  7. Click and drag the highlighted footage to change the time range of the video that you want to get from the SD card.
    It can take about 30 seconds for the snapshots to load.

Request videos

  1. When you have chosen a time range, select GET VIDEO.
    A message confirms that the video is on the way.

  2. In the confirmation message, select BACK TO VIDEO to return the Events tab, or select REQUEST ANOTHER VIDEO to remain in the timeline and request another video.

  3. When the video is ready to watch, you'll receive an email notification, a desktop alert, or a push notification to your mobile device.

  4. Select the notification to watch the video to go to the Events tab. The requested video is available in the Events tab with the Requested tag.

Videos are deleted from Reveal after 90 days. You can request older videos within a certain time period, which depends on your data retention plan and location.

Can't find videos on the SD card?

If you still can't find the video you want, consider whether any of the following apply:

If you suspect a collision has occurred and a video was not triggered in Reveal, download footage from your SD card as soon as possible.

Download SD card videos.

Replace camera SD cards.

The 'No snapshot available' message

The No snapshot available message appears when:

  • The vehicle enters an area with bad network coverage.
  • You are logged in to Reveal using a device with bad network or WIFI coverage.
  • The vehicle goes offline while the user is searching footage in GET VIDEO.

Footage is available intermittently when:

  • The camera loses power during a sudden jolt or collision.
  • The camera reboots or updates.

If you see the No snapshot available message, download footage from your SD card as soon as possible.

Download SD card videos.
