View and manage vehicle and asset categories

En Español

The Vehicle and Asset Categories page lists all of the categories that have been created, plus the default categories.
The default categories and their descriptions are as follows:

  • Heavy equipment: A heavy-duty asset frequently used for earthworks and large construction tasks. Examples include excavators and cranes.
  • Heavy vehicles: A large motor vehicle used for carrying goods and passengers by road. Examples include semi-trailers, livestock vehicles, and buses.
  • Light vehicles: A small motor vehicle used for carrying goods and passengers by road. Examples include vans and pickup trucks.
  • Small equipment: An asset used for small to mid-sized tasks. Needs to be transported to a location by a vehicle or another asset. Examples include chainsaws and generators.
  • Trailers: An asset that can be attached to a vehicle via a towbar. Examples include tanks, flatbeds, and multi-car trailers.

On the Vehicle and Asset Categories page you can do the following:

  • View category information, including:
    • How many of your vehicles and assets have been assigned to each category
    • A description of each category
  • Create new categories
  • Edit existing categories
  • Delete categories
  • See how many of your vehicles and assets are currently not assigned to a category, in the Uncategorized field

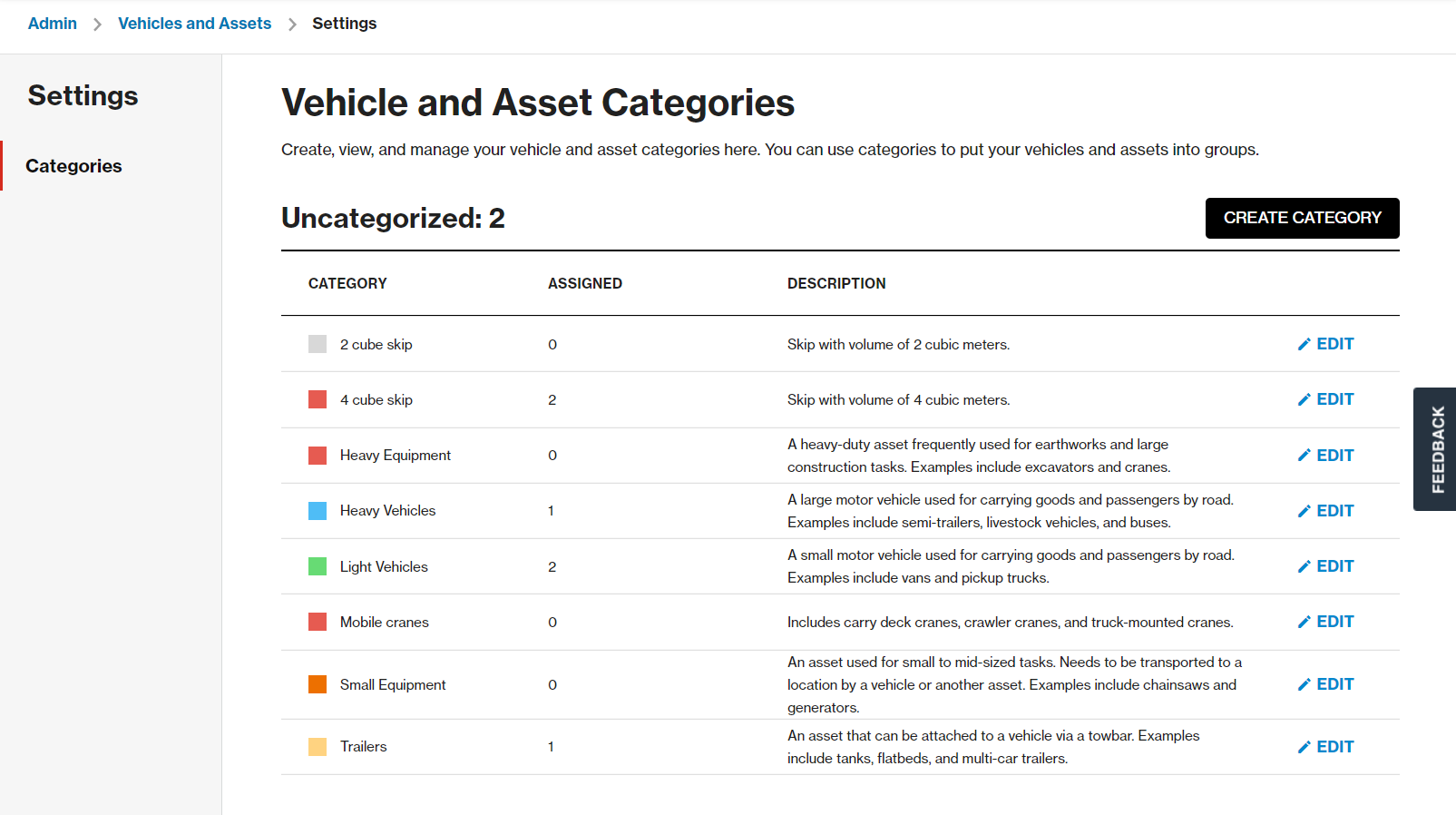

The Vehicle and Asset Categories page shows the following information for each category:

  • Category: The name of the category. The colored square beside the name indicates the color that has been assigned to the category.
  • Assigned: The number of vehicles and assets that are currently assigned to the category.
  • Description: A description of the category.

View vehicle and asset categories

From the Admin > Vehicles and Assets page, click the Settings icon cog.png to open the Vehicle and Asset Categories page.

Create a vehicle and asset category

You can create any number of categories to assign your vehicles and assets to.

To create a category:

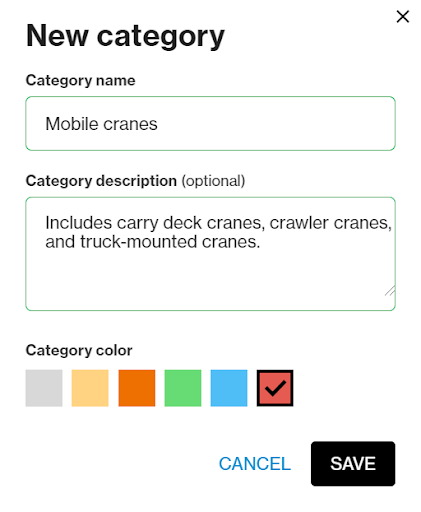

  1. From the Vehicle and Asset Categories page, click the CREATE CATEGORY button to open the New category dialog box.
  2. Enter a name for the category in the Category name field.
  3. Optionally, enter a description in the Category description field.
  4. Select a color from the Category color field. Selecting a color makes it easier to distinguish the categories from one another when viewing the Vehicle and Asset Categories page.
  5. Click SAVE. The new category is listed on the Vehicle and Asset Categories page, and is also listed on the Assign Category dialog box > Category field drop-down menu.

Edit a vehicle and asset category

  1. From the Vehicle and Asset Category page, click the Edit icon Edit_Pencil_icon.png for the category that you want to edit. The Edit category dialog box opens.
  2. Make your changes.
  3. Click SAVE.

Delete a vehicle and asset category

  1. From the Vehicle and Asset Category page, click the Edit icon Edit_Pencil_icon.png for the category that you want to edit. The Edit category dialog box opens.
  2. Click DELETE.
  3. On the confirmation dialog box, click DELETE.
