Update an asset tracker's daily check-in rate and check-in rate when moving from its device settings in Reveal. Choose rates that match the tracker type and how often the asset moves to balance timely updates with battery life.

Link to Reveal: Fleet and device list

Before you begin

Device types covered:

• Powered asset trackers (Equipment Asset Tracker)
• Non-power asset trackers (Asset Data Device - Battery and Equipment Asset Tracker - Battery)

Updating the check-in settings

To update the check-in settings:

1. Go to Admin > Fleet and device list.
2. Search for the asset in the list.
3. From the Actions menu, click View device details.
4. On the Device Details page, click Settings.

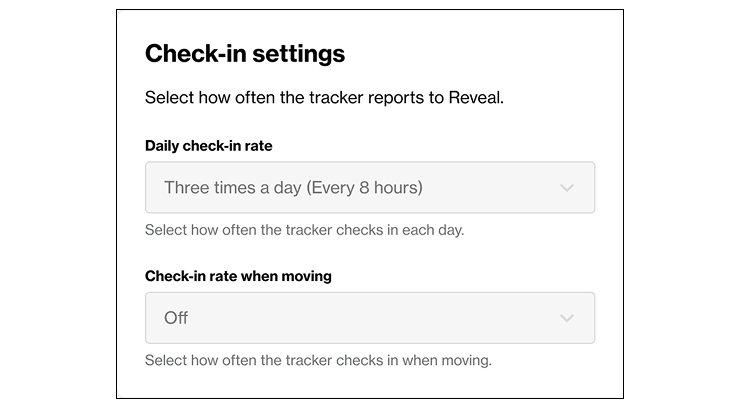

5. Scroll to the Check-in settings section.

6. Click the down arrow to open options.

7. Select a check-in rate for your device type.

   For non-powered asset trackers, setting a check-in rate of more than 4 times per day will significantly increase power consumption and shorten the tracker’s battery life.

   Daily check-in rate	Powered Trackers	Non-Powered Trackers
   Once a day / Every 24 hours	x	x
   Twice a day / Every 12 hours	x	x
   Three times a day / Every 8 hours	x	x
   Four times a day / Every 6 hours	x	x
   Six times a day / Every 4 hours	x	N/A
   Eight times a day / Every 3 hours	x	N/A

8. Locate the Check-in rate when moving field.
9. Click the down arrow to open options.
10. Select an interval:

    • For powered trackers: 30 seconds or 90 seconds.

      By default, powered trackers check-in every 30 seconds when moving if the tracker is receiving external power. When no external power is received, the trackers check in once an hour.

    • For non-powered trackers: 15 minutes, 30 minutes, or 45 minutes.

      For non-powered assets, we recommend that you only use the Check-in rate when moving setting for assets that rarely move. If an asset is moved daily, this setting will increase power consumption and shorten the tracker’s battery life

11. Click SAVE CHANGES.
12. Confirm in the dialog box that appears.
13. Click SAVE to finalize.
    Once saved, your new settings will apply the next time the tracker checks in (usually within 24 hours).
14. To complete the update, move the asset to an area with good network coverage for 5 to 10 minutes within the next 24 hours. This allows the tracker to receive and sync your configuration changes. For powered assets, turn the asset on.

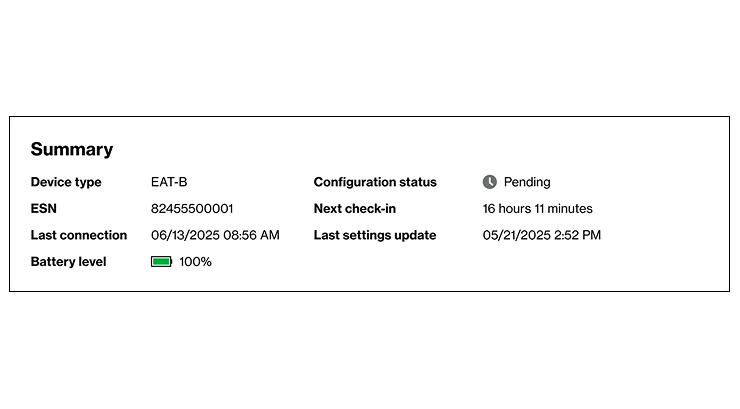

Details of your configuration

Summary section shows the current state of your tracker settings:

• Configuration status:
  • Success = Settings have been saved to the tracker.
  • Pending = Settings are queued and will be saved on next check-in (typically within 24 hours).
• Last settings update: The date and time your most recent settings change was applied to the tracker.
• Battery level: Percentage of battery remaining (informational only; battery health cannot be adjusted in this panel)
