See non-powered assets on Live Map

To see non-powered assets from your fleet on Live Map, follow these steps:

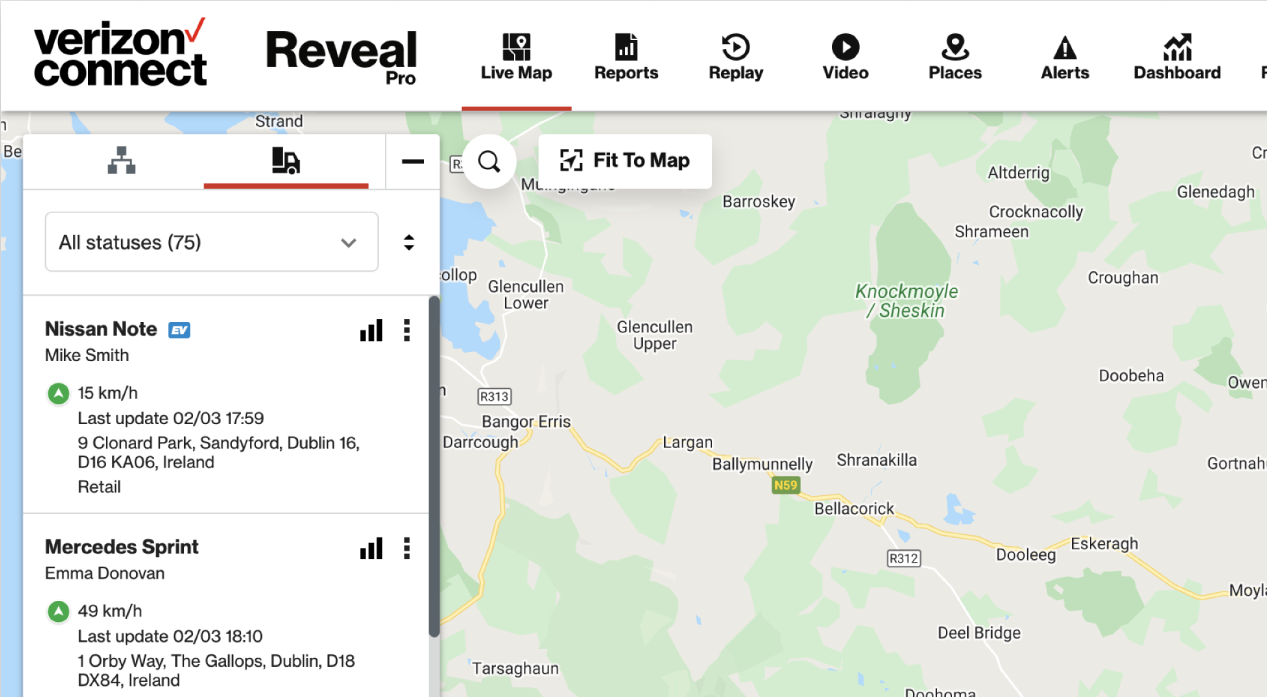

  1. Click the Fleet Status tab vehicle_status_image.png.

  2. Select the non-powered asset you want to see on the map.

  3. Zoom out to see all your visible assets and vehicles on the map.

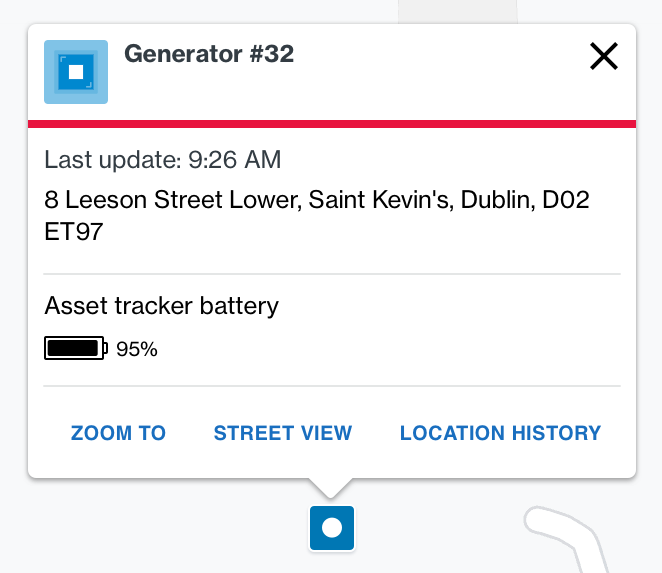

When you click on a non-powered asset on the map, a pop-up opens with the following details and actions:

  • Non-powered asset name

  • Date and time when the non-powered asset’s details were last updated

  • The asset's last reported location

  • ZOOM TO - Zoom the map so that the non-powered asset is shown in the center of the zoomed-in map

  • STREET VIEW - Change to street view near the non-powered asset’s current location

  • LOCATION HISTORY - Go to the Location History tab for this non-powered asset to view the non-powered asset’s most recent location updates.


Not seeing non-powered assets?

If you don’t see any non-powered assets, you need to:

  1. Click the Fleet Selection tab vehicle_selection_tab.JPG.

  2. Select the non-powered assets you want to see.

  3. Go back to the Fleet Status tab and the non-powered assets are now listed.

Read more about how to view and edit non-powered assets.

Read more about how to see vehicles on Live Map.
